FireCAD

Thermal design software for industrial steam boilers

Design the boiler before you build it.

FireCAD sizes the furnace, boiler bank, superheater, economizer and air heater for solid-fuel, oil and gas-fired steam boilers. Boiler manufacturers and consultants in more than 30 countries have used it since 2002.

Request a demoSee pricing

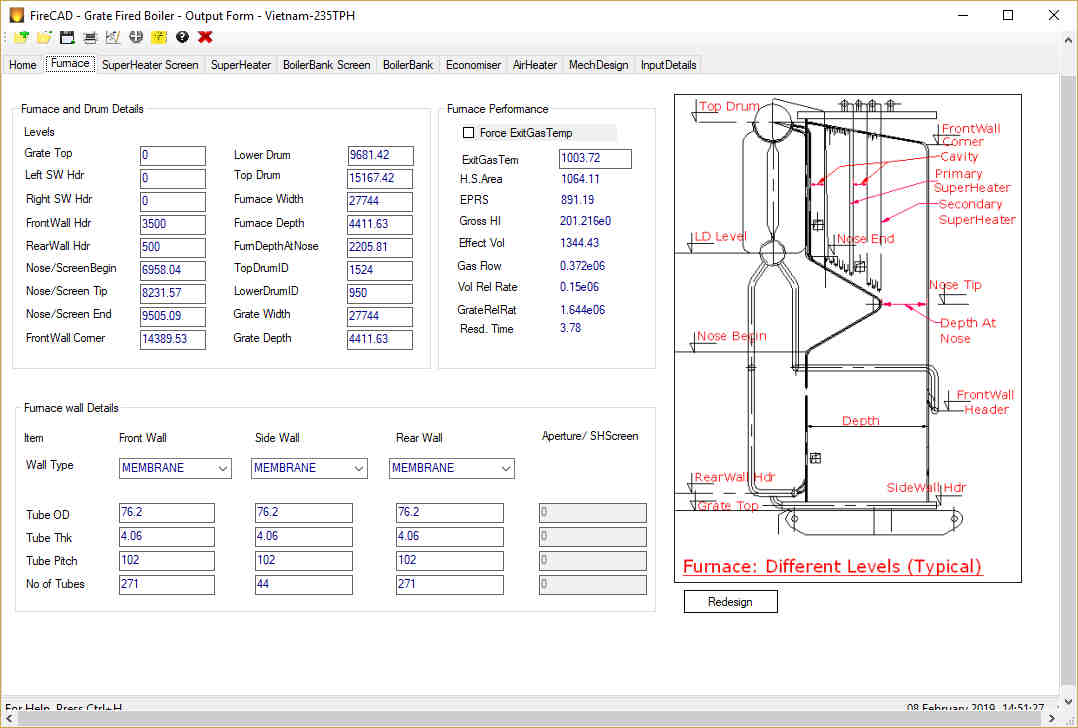

FireCAD grate fired boiler program: output form for an 85,000 kg/hr bagasse boiler
FireCAD grate fired boiler program, output form (example run).
Grate fired boilers3 to 300 TPHThe Complete SuiteAll six modules, one licenceNew: KALPA CADWorks natively in DWGFree calculatorsHeat duty, efficiency, fans
2002Founded by a thermal engineer
30+Countries where FireCAD is used
250,000kg/hr, one of the world's largest bagasse boilers, designed with FireCAD
50+Cogeneration plants in operation in India, Asia and Africa, with boilers designed by FireCAD

Software that follows the flue gas, from furnace to stack

Each program covers one kind of equipment. They share the same fuel and flue-gas database, the same units and the same report layout, so a design moves from one to the next without retyping.

One range, from 200 kg/hr to 1000 TPH

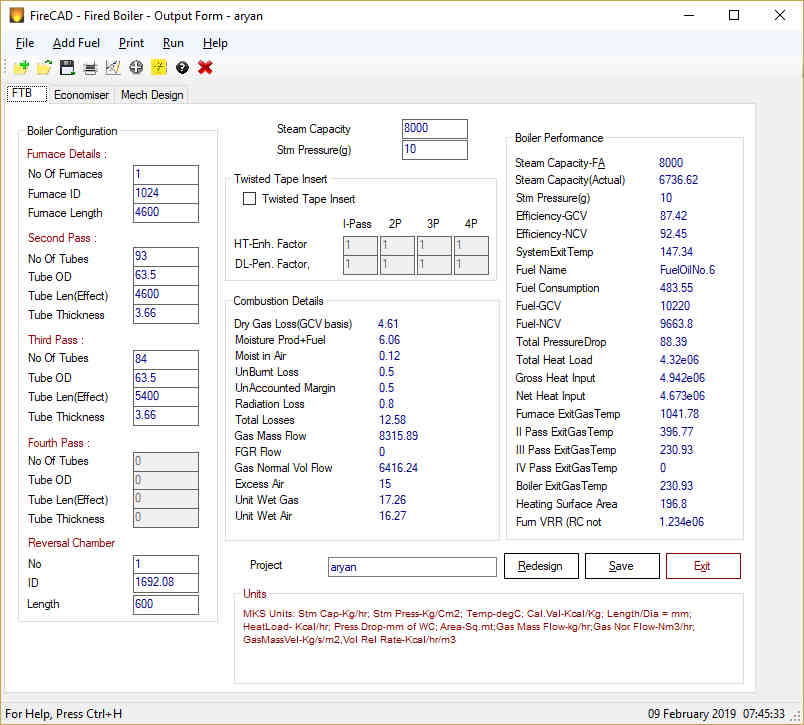

Fire tube boiler
200 kg/hr to 50 TPH

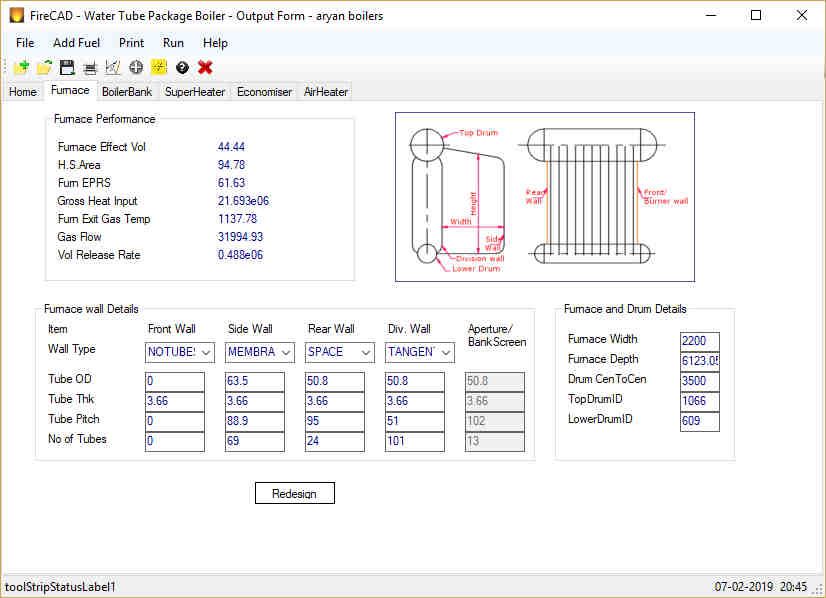

Water tube package boiler
3 to 150 TPH
Grate fired boiler
3 to 300 TPH

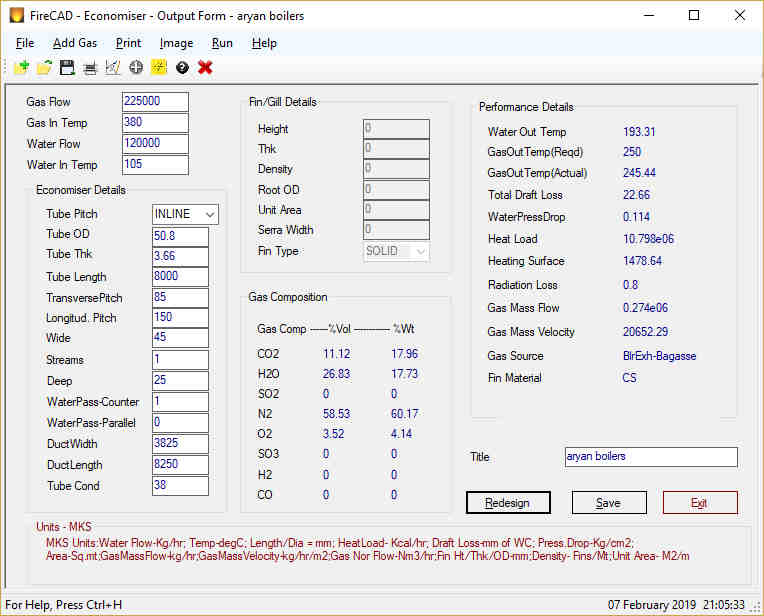

Economizer
up to 1000 TPH

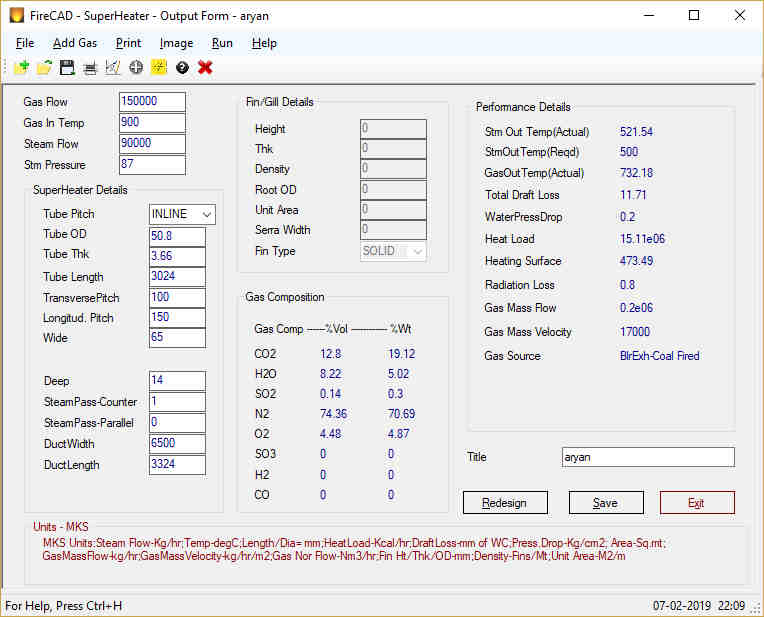

Superheater
sized with the boiler

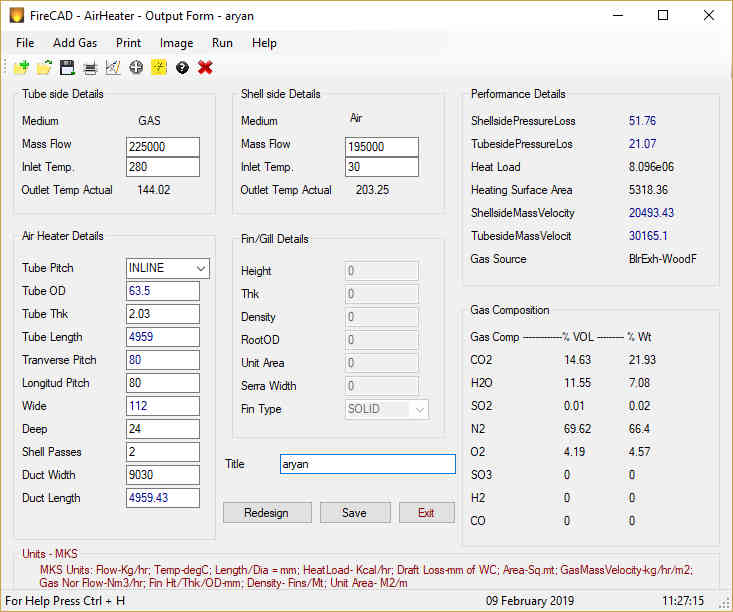

Air heater
sized with the boiler

Pricing: 1-year and 2-year subscriptions · The Complete Suite

Solutions for the industries that run on steam

Sugar and biomass cogeneration

Bagasse, rice husk, wood and other biomass boilers, and the power plants around them.

Process and chemical plants

Package boilers, waste heat boilers and hot water generators for process industries.

Power and heat recovery

Superheaters, economizers and air heaters for fired boilers, HRSGs and waste heat recovery.

Engineering services

How a design run works

  1. Enter the duty

    Steam flow, pressure and temperature, feedwater temperature, fuel and excess air. Units in MKS, SI or FPS.

  2. Let AutoDesign size it

    AutoDesign proposes a first layout from the duty, so you start from a sensible design and not from a blank sheet.

  3. Refine each surface

    Gas temperatures, heat duty and heating surface are listed for the furnace and every convection surface. Change the layout and run again.

  4. Print the report

    A detailed report for the customer, the inspector or your own file.

Input

Steam flow
85 TPH
Steam pressure
87 bar(g)
Steam temperature
515 °C
Fuel
Bagasse
Excess air
30 %

AutoDesign sizes the first layout from these values.

Result

SurfaceGas in, °CGas out, °CArea, m²
Furnace-801.7696
Secondary superheater801.7664.0601
Primary superheater664.0535.3674
Boiler bank508.1418.2593
Economizer418.2248.11356
Air heater248.1135.74248

Boiler efficiency 88.3 % on NCV (70.7 % on GCV)

Values from an example run of the grate-fired boiler program.

Follow the heat through the boiler

FireCAD lists gas temperature, heat duty and heating surface for the furnace and every convection surface.

Cutaway of a grate-fired water-tube boilerFlue gas leaves the furnace at about 1050 degrees Celsius, passes the superheater, the boiler bank, the economizer and the air heater, and reaches the stack at about 150 degrees Celsius. Temperatures are illustrative.gratesteam out1050 °C800 °C420 °C250 °C150 °CFurnaceSteam drumSuperheaterMud drumEconomizerAir heaterStackBoiler bank
Flue-gas path through a grate-fired water-tube boiler. Temperatures are illustrative.

Boilers designed with FireCAD

General arrangement drawing of a 120 TPH bi-drum bagasse-fired boiler, designed by FireCAD Technologies
General arrangement of a 120 TPH bi-drum bagasse boiler (design: FireCAD Technologies).
PlantBoilerPower
Shivshakti Sugars Ltd., Unit 2120 TPH, 87 kg/cm², 520 °C22 MW co-gen
Shri Shivsagar Sugar & Agro Products50 TPH, 72 kg/cm², 500 °C3 MW

Customers include Saskatoon Boiler Mfg. (Canada), Cannon Boiler Works and The McBurney Corp (USA), AESYS Technologies (USA), Lointek (Spain) and PT Mitra Adyaniaga (Indonesia).

See the client list

See it on your own boiler

Tell us the boiler type, duty and fuel. We will show FireCAD on a case close to yours.
